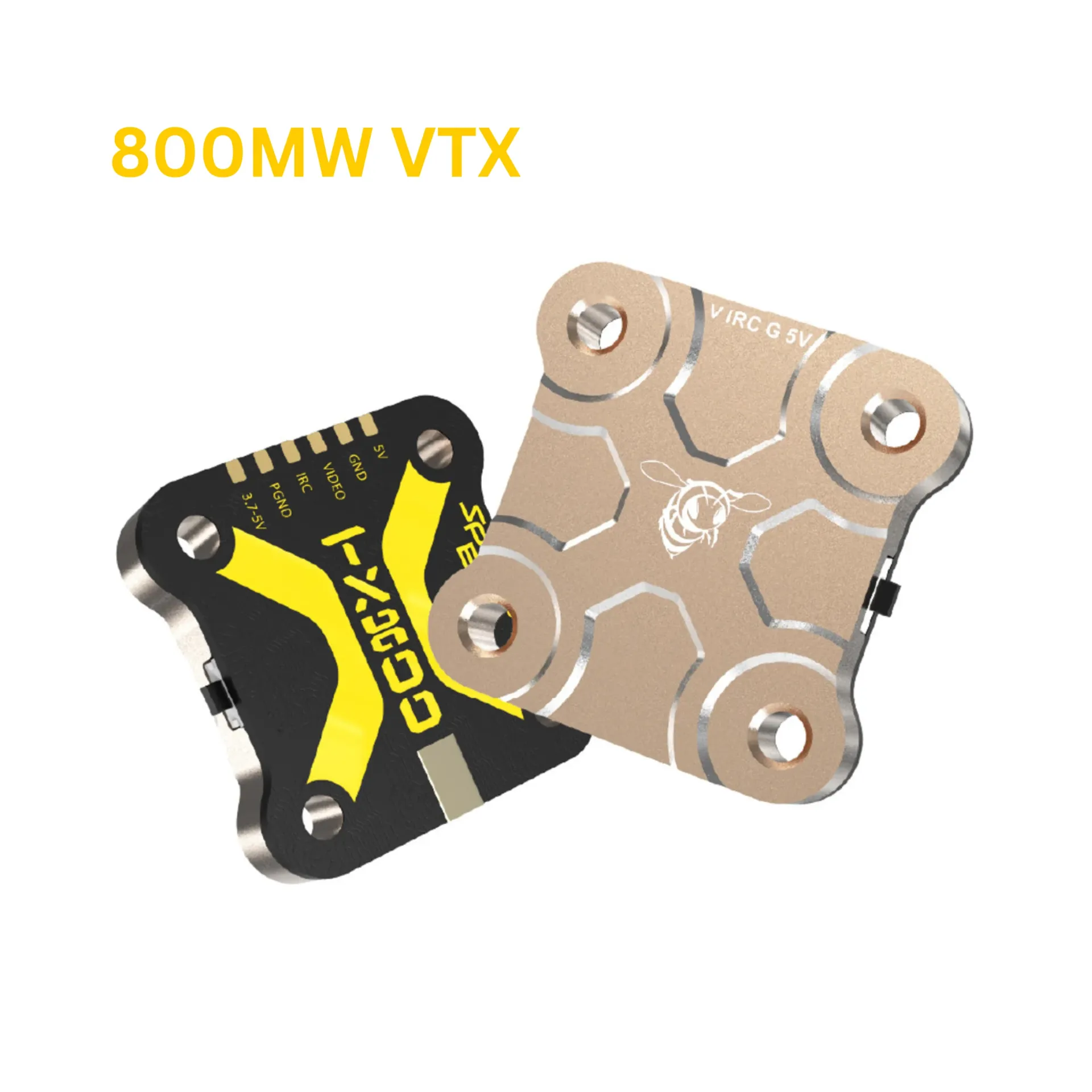

SpeedyBee TX800 5.8GHz Video Transmitter

The SpeedyBee TX800 5.8GHz Video Transmitter is a compact, high-performance analog VTX designed specifically for FPV racing and freestyle drones, offering up to 800mW of output power.

• Adjustable Output Power: Supports five power levels: PIT, 25mW, 200mW, 400mW, and 800mW, allowing pilots to balance range and interference.
• IRC Tramp Protocol: Enables remote configuration of frequency, band, and power via the Betaflight OSD or a radio transmitter.
• SpeedyBee App Integration: If used with a Bluetooth/Wi-Fi enabled flight controller, parameters can be modified wirelessly through the SpeedyBee App.
• Pit Mode: Allows for safe on-ground powering without interfering with other pilots in the air.

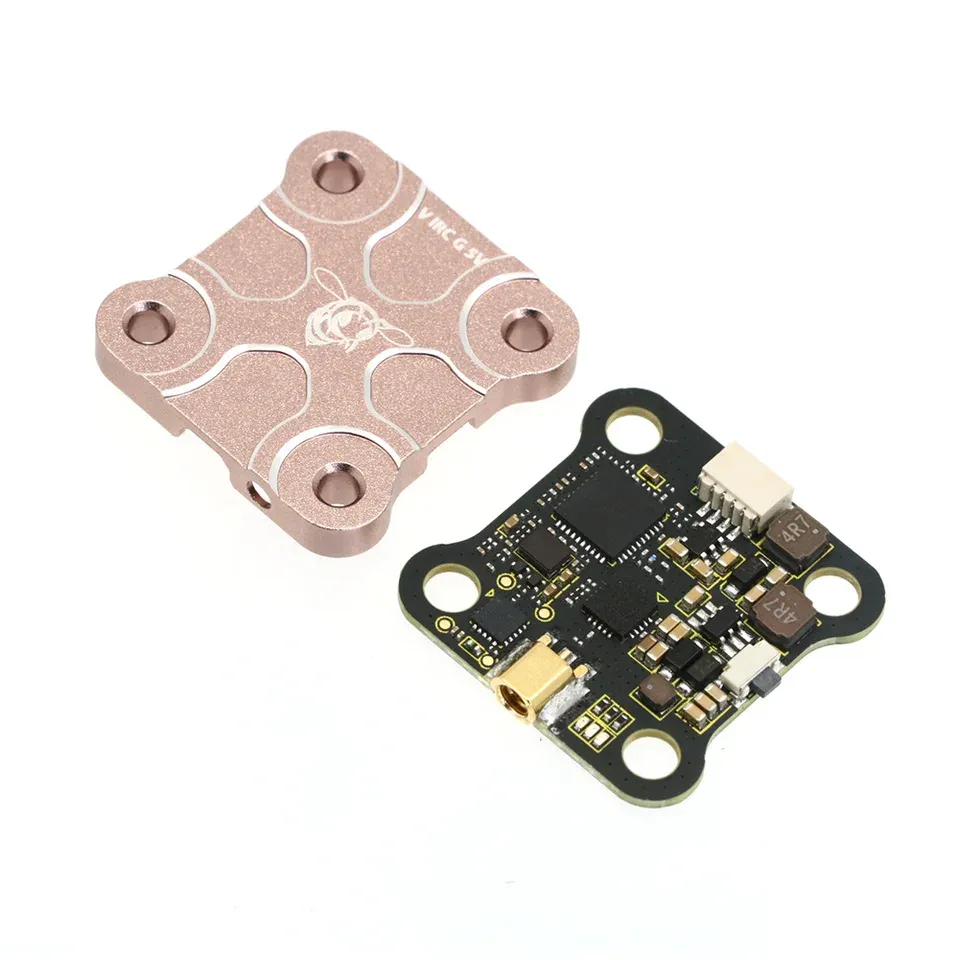

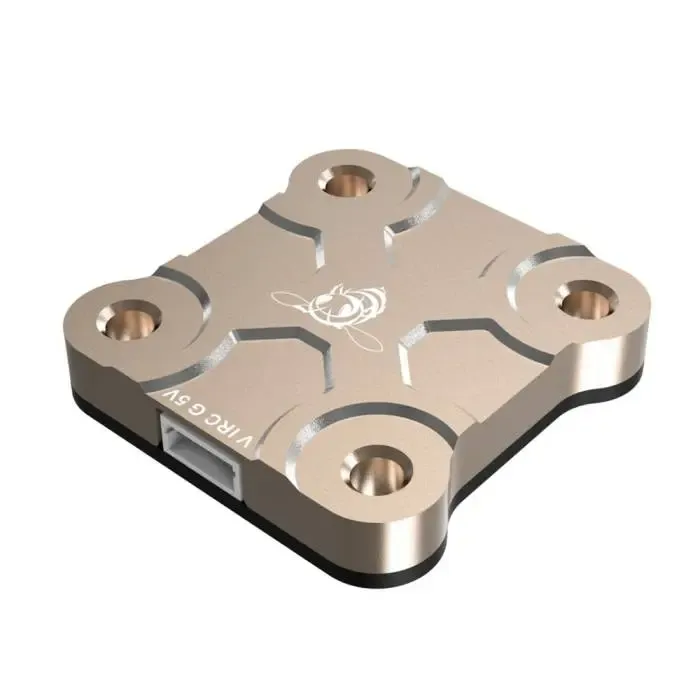

• Thermal Management: Features an integrated metal heatsink to manage heat effectively during high-power operation.
• User Interface: Includes side LED indicators for intuitive status feedback on channel, band, and power settings.
•


• Frequency/Channels: 5.8GHz band with 48 channels.
• Input Voltage: 3.7V to 5.5V (typically powered via a regulated 5V supply).
• Current Consumption: 250mA to 750mA at 5V, depending on selected power.
• Antenna Connector: MMCX (adapter to SMA often included in the package).
• Video Input Impedance: 75 Ohm.

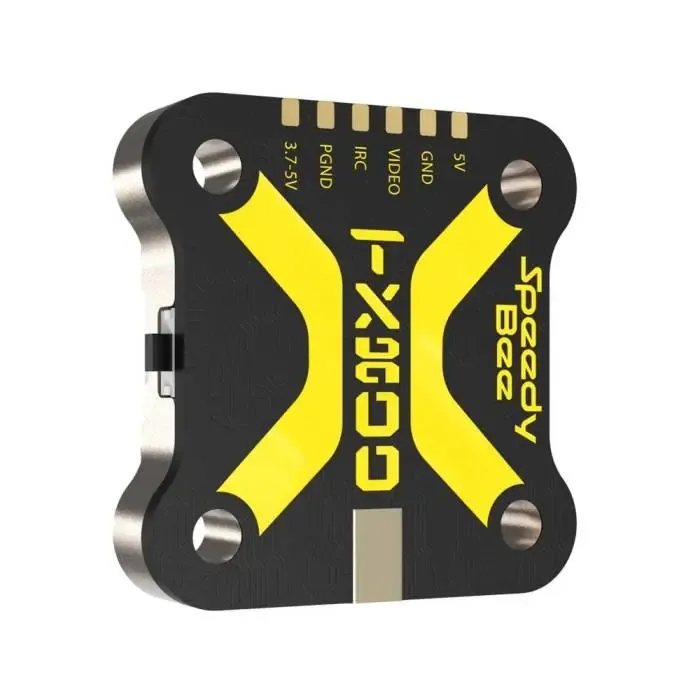

• Form Factor: 28mm x 28mm PCB size with a standard 20x20mm M2 mounting pattern.
• Weight: Extremely lightweight at 5.6g (excluding antenna).
