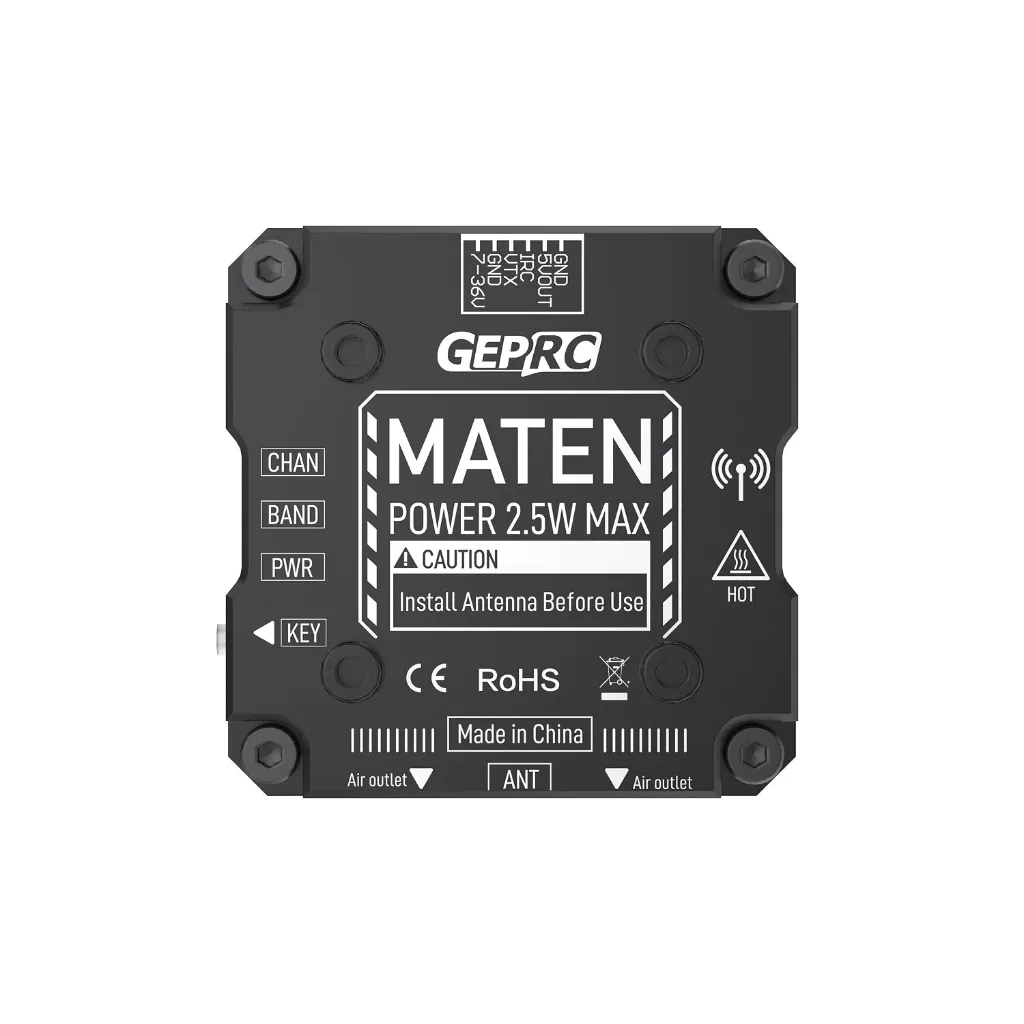

GEPRC MATEN 5.8G 2.5W VTX PRO

The GEPRC MATEN 5.8G 2.5W VTX PRO is a high-power analog video transmitter designed for long-range FPV drones, featuring a maximum output of 2500mW and integrated active cooling. Encased in a CNC-machined aluminum alloy shell, it provides high impact resistance and stable signal penetration for professional-grade flights.

• High Power Output: Supports five adjustable power levels ranging from 25mW to 2500mW, plus a Pit mode for safe bench testing.

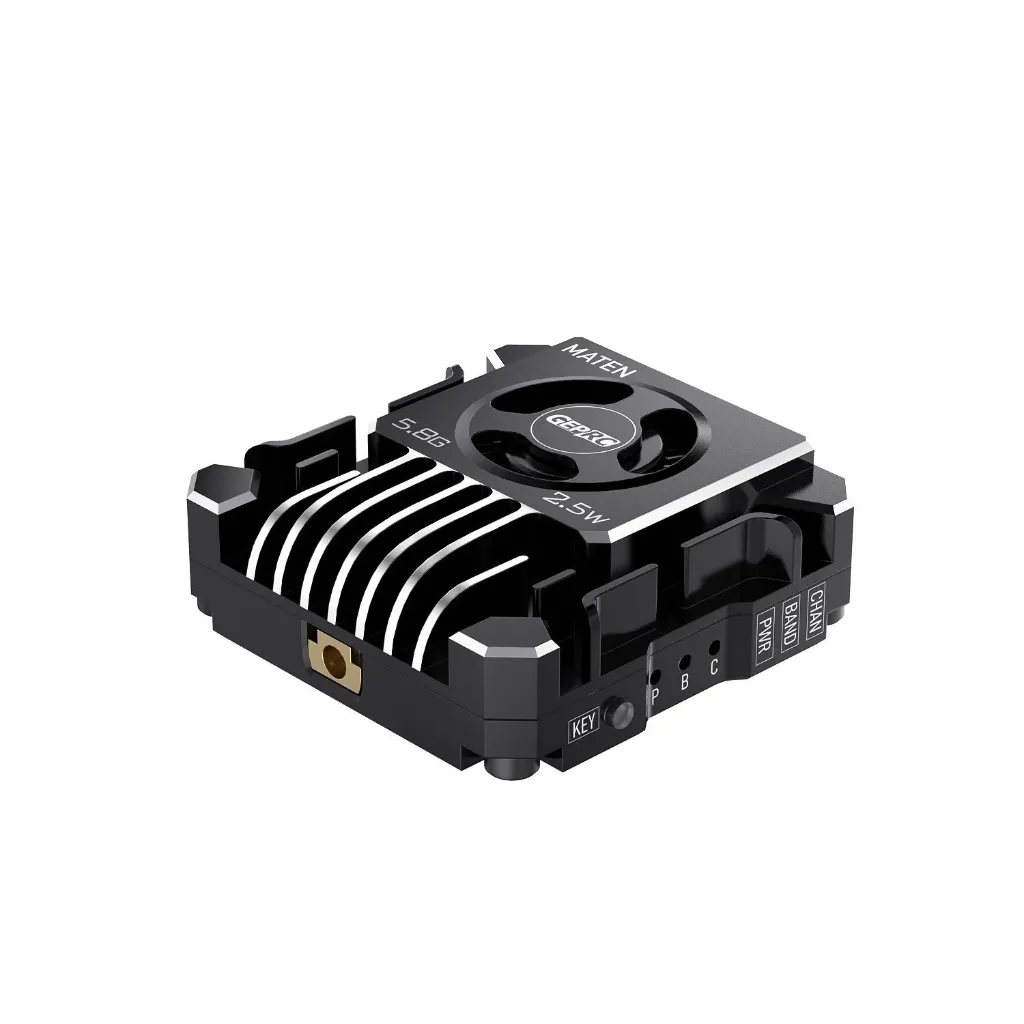

• Active Thermal Management: Features a built-in micro turbofan and a high-strength aluminum CNC shell with cooling fins to prevent overheating during high-power operation.
• Integrated Audio: Includes a built-in microphone for real-time transmission of drone sounds, providing a more immersive FPV experience.
• Versatile Mounting: Supports dual installation patterns, compatible with both 20x20mm (M2) and 30.5x30.5mm (M2) mounting holes.
• Advanced Protection: Equipped with temperature control protection that automatically adjusts or cuts power to prevent high-temperature damage.

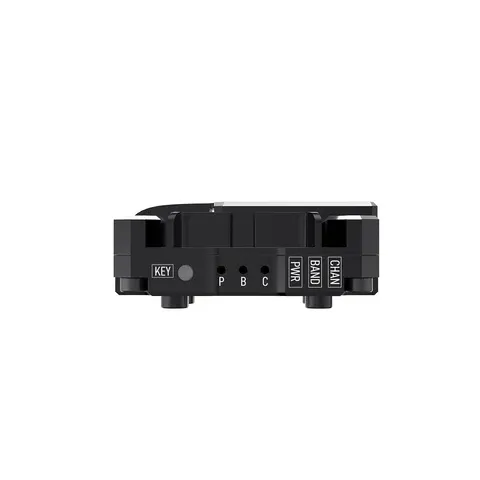

• User-Friendly Control: Supports the IRC Tramp protocol for OSD parameter adjustments and includes a single function button with three indicator lights for manual configuration.
•


• Model: GEPRC MATEN 5.8G 2.5W VTX PRO.
• Input Voltage: DC 7-36V (Supports 2S to 8S LiPo batteries).
• Output Voltage: 5V @ 600mA (specifically for camera or auxiliary fan use only).
• Frequency/Channels: 5.8GHz with 72 transmission channels (some regional versions may support up to 80CH).
• Antenna Interface: MMCX.
• Cable Interface: SH1.0 6-pin.
• Video Format: PAL / NTSC.
• Dimensions: 36.3 x 36.3 x 15.1mm.
• Weight: 20g.
