SpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC&ESC Stack

₹ 8,094.29 ₹ 8,094.29


30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Description

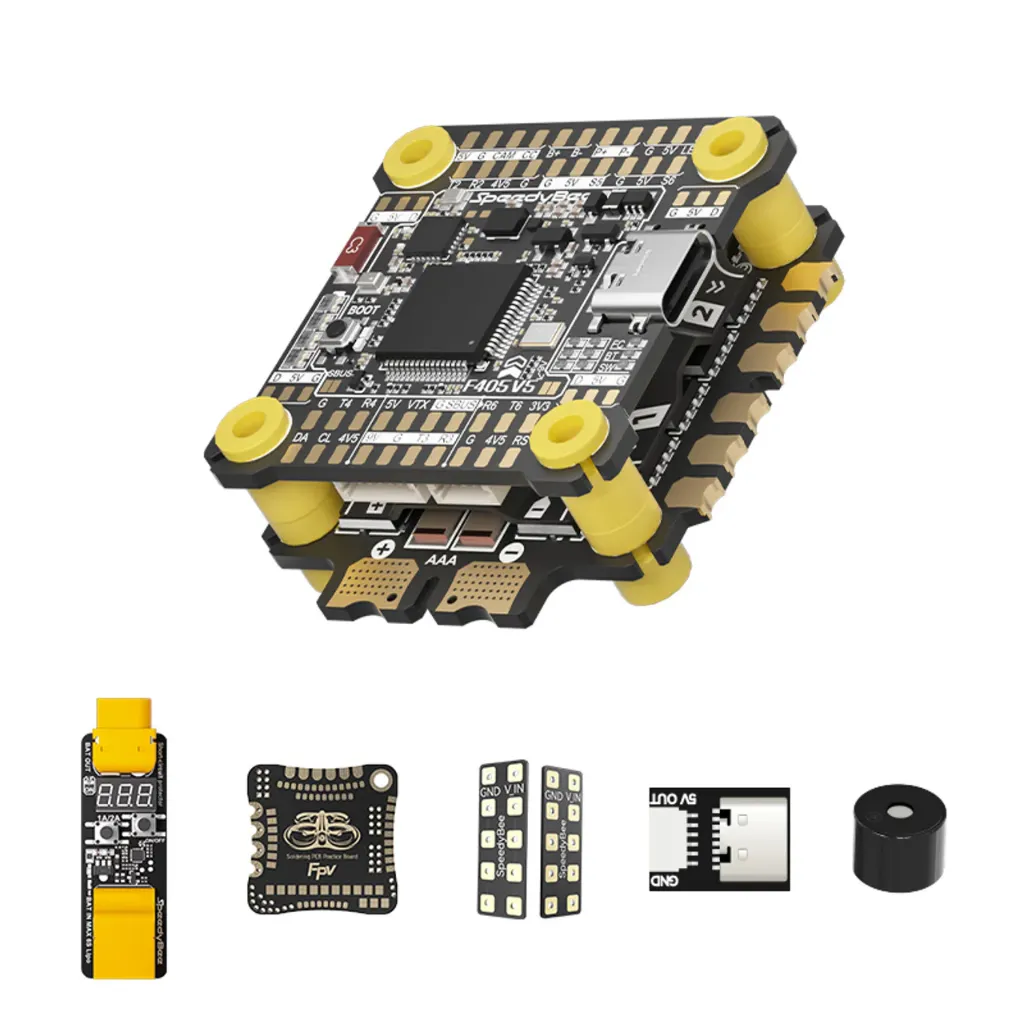

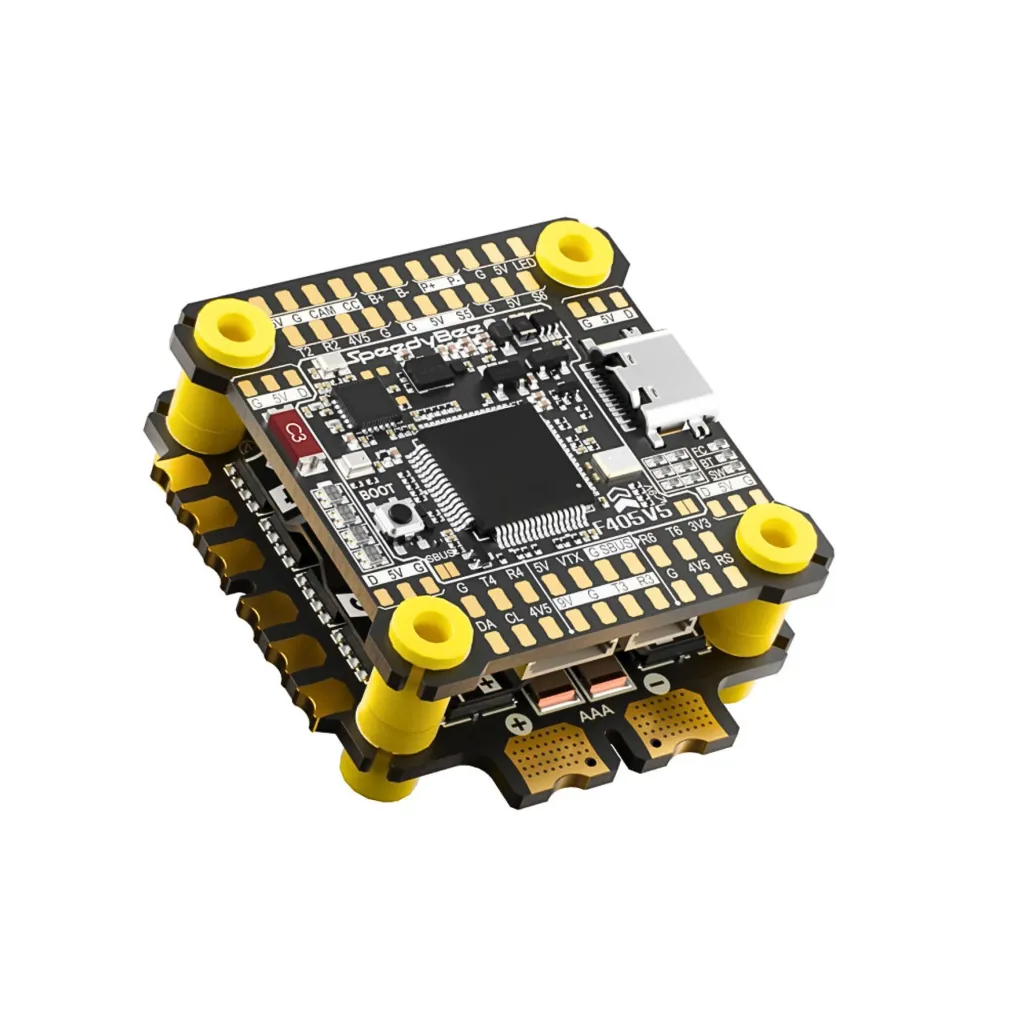

SpeedyBee F405 V5 OX32 55A 30x30 Model Aircraft FC&ESC Stack

The SpeedyBee F405 V5 OX32 55A 30x30 Stack is a high-performance flight control system designed for FPV racing, freestyle, and cinematic drones, featuring advanced wireless tuning and robust power delivery. This integrated solution combines an STM32F405 flight controller with a 55A 4-in-1 ESC using OX32 firmware for optimized throttle response and stability.

  • Wireless Tuning 2.0: Allows pilots to update firmware, adjust parameters, and even unbrick the controller wirelessly via the SpeedyBee App.
  • Integrated 16MB Blackbox: Features built-in flash storage for flight logging, eliminating the need for external SD cards.
  • DJI Air Unit Support: Includes a 6-pin connector for plug-and-play compatibility with DJI O3, RunCam Link, and Caddx Vista systems.
  • Independent Power Rails: Uses isolated circuits for the MCU and gyro to significantly reduce electronic noise and interference.
  • Environmental Protection: Comes with a factory-applied conformal coating to protect electronics from moisture, dust, and debris.
  • Onboard Battery Indicator: Features a 4-level LED system to provide real-time battery status without requiring a separate checker.


  • MCU: STM32F405 (up to 168MHz).
  • IMU (Gyro): High-precision ICM42688P.
  • Barometer: Built-in SPA06-003.
  • OSD Chip: AT7456E for crisp analog display.

  • BEC Outputs:

    • 5V: 9 groups, total current up to 2.5A.
    • 9V: 2 groups, total current up to 3A with PINIO remote control.
    • 4.5V: 3 groups (1A max) for powering GPS/Receiver via USB.
  • UARTs: 6 sets (UART1 for Bluetooth, UART5 for ESC Telemetry).
  • Dimensions & Weight: 39 x 39 x 4.9 mm; 8.1g.
  • Continuous Current: 55A per channel (220A total).
  • Burst Current: 70A per channel for up to 10 seconds.
  • Input Voltage: 3-6S LiPo.
  • Firmware: Optimized OX32.
  • Protocols: Supports DSHOT300 and DSHOT600.
  • Hardware Protection: Built-in TVS protective diode and included 1000µF low ESR capacitor to handle voltage spikes.
  • Dimensions & Weight: 40.9 x 44.9 x 8.0 mm (with heatsink); 19.1g.
