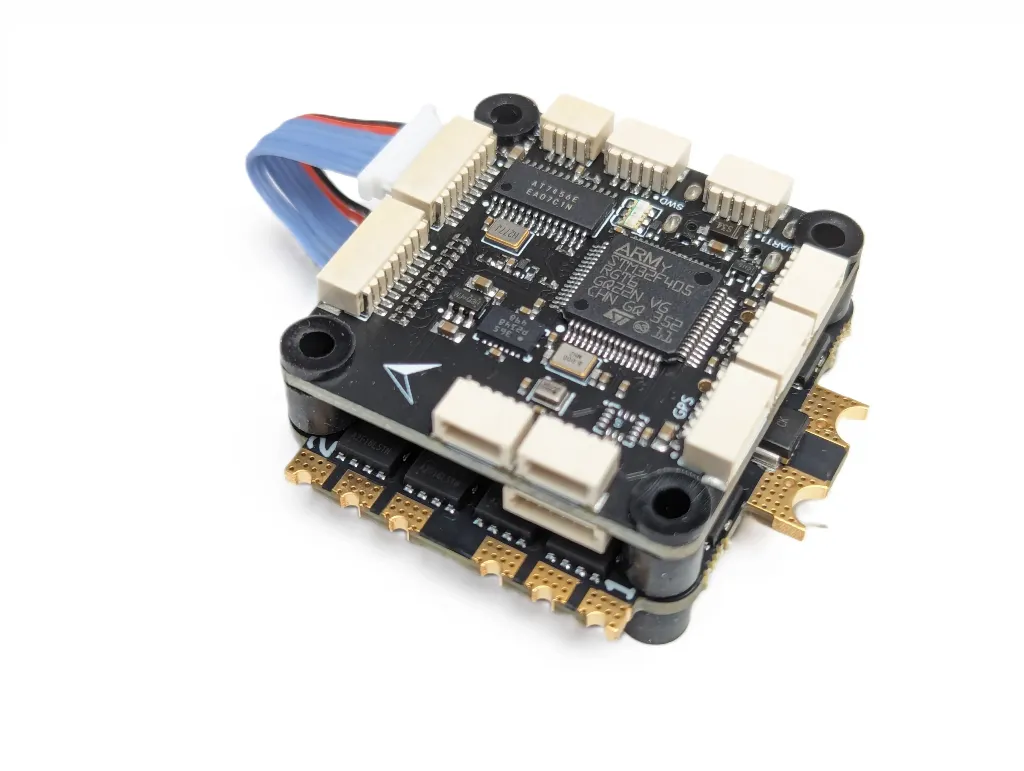

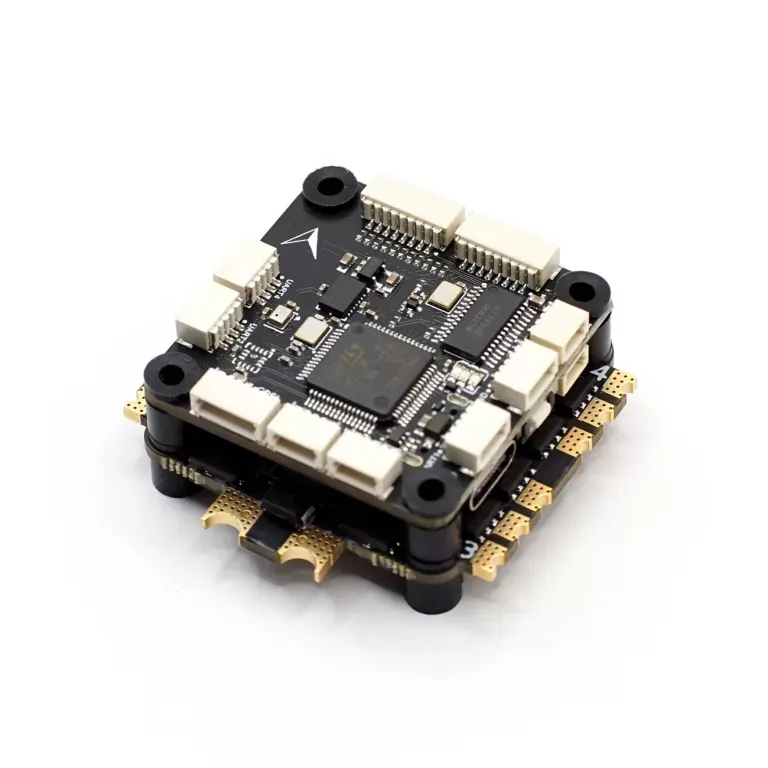

The MicoAir F405 V2 Stack is a high-performance flight control system that combines a feature-rich flight controller with a 50A 4-in-1 ESC. It is specifically designed to support advanced firmware like ArduPilot and INAV, making it a versatile choice for FPV racing, long-range drones, and autonomous flight applications.

• Solderless Installation: Uses SH1.0 socket connections for all interfaces, including the ESC and DJI O3 Air Unit, simplifying the build process.
• DJI O3 Air Unit Integration: Features a dedicated 6-pin connector with 9V output and low-noise characteristics to ensure stable power and clear EIS (Electronic Image Stabilization).
• Firmware Support: Officially supported by ArduPilot (v4.5.0+) and INAV (v6.1.1/v7.0.0+), providing a wide range of navigation and customization options.
• Noise Reduction: The default 48K PWM frequency of the Bluejay firmware helps reduce electrical interference with the IMU, enhancing positioning accuracy.

• Dimensions: 36 x 36 x 8 mm (FC).
• Mounting: 30.5 x 30.5mm with 4mm holes.
• Weight: Approximately 9g (FC) and 50g for the total stack package including wiring.
