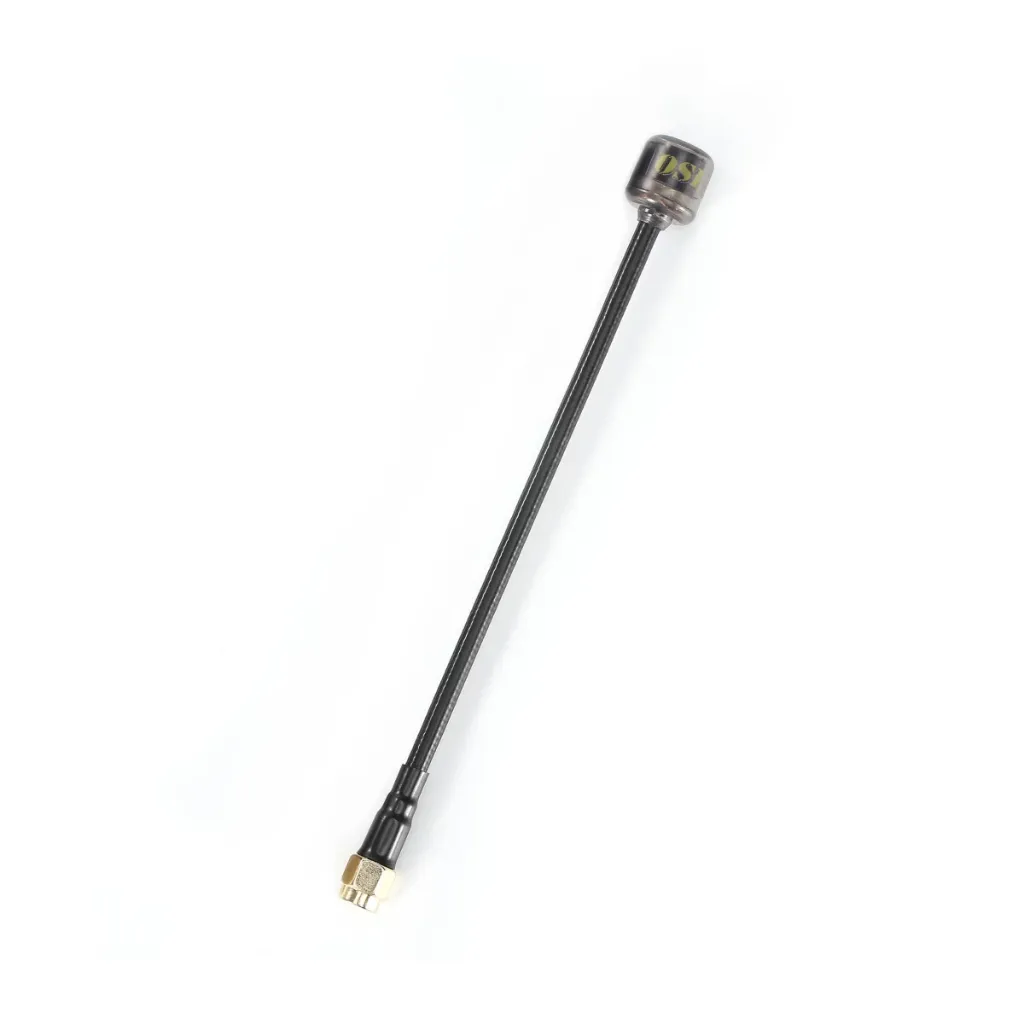

FlyFishRC Osprey 5.8Ghz 150mm Antenna

The FlyFishRC Osprey 5.8GHz 150mm Antenna is a high-performance, lightweight omnidirectional antenna featuring a unique 4-leaf construction and a transparent, impact-resistant polycarbonate shell. It is designed for FPV pilots seeking superior signal penetration and clarity in a compact, durable form factor.

• Near-Perfect Circular Polarization: According to FlyFishRC, sophisticated engineering provides a highly consistent circular shape that improves both range and signal penetration.
• Wide Bandwidth: It covers the standard FPV 5.8GHz band with a range of 5.6GHz to 6.0GHz, ensuring a clear signal across various frequencies.
• Durable and Compact Design: The antenna head is smaller than many competitors at 14.1mm x 14mm, and its hermetically sealed polycarbonate casing protects it from impacts, moisture, and debris.
• High Radiation Efficiency: It maintains a 99% radiation efficiency despite its small size, outperforming many larger antennas in its class.
• Resilient Cabling: It utilizes a gold-plated connector and resilient RG141 coaxial cable for reliable signal transfer and physical durability.

• Gain: 2.82 dBi
• Frequency Range: 5.8GHz (5.6GHz – 6.0GHz)
• V.S.W.R: ≤1.2:1
• Radiation Efficiency: 99%
• Polarization Options: Available in RHCP (Right Hand Circularly Polarized) and LHCP (Left Hand Circularly Polarized)
• Connector Options: SMA or RP-SMA (Gold-plated)
• Dimensions (Head): 14.1mm diameter x 14.0mm height
• Cable Length: 150mm

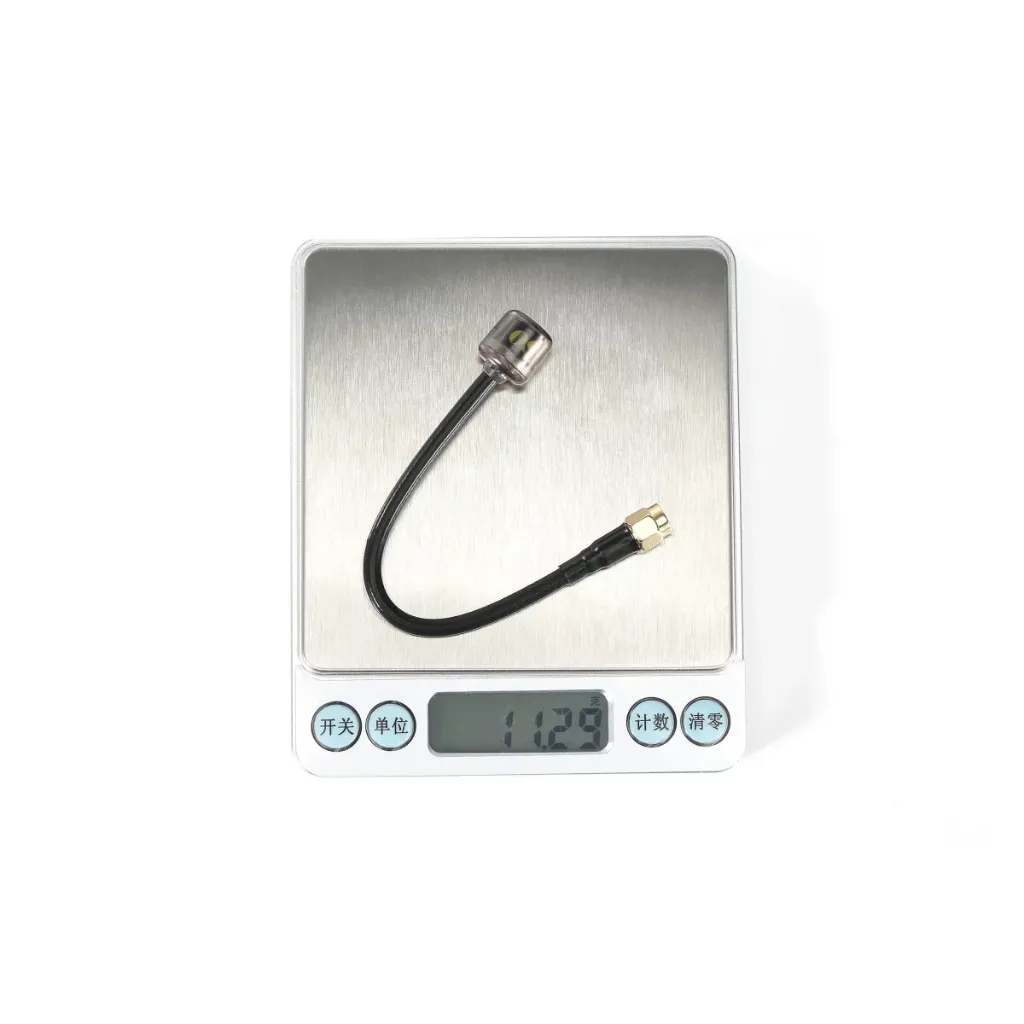

• Weight: 11.29g
• Materials: Impact-resistant polycarbonate shell; RG141 coaxial cable.
