T Motor Antigravity MN6007II KV320

₹ 12,046.67 ₹ 12,046.67


30-day money-back guarantee
Shipping: 2-3 Business Days

Description

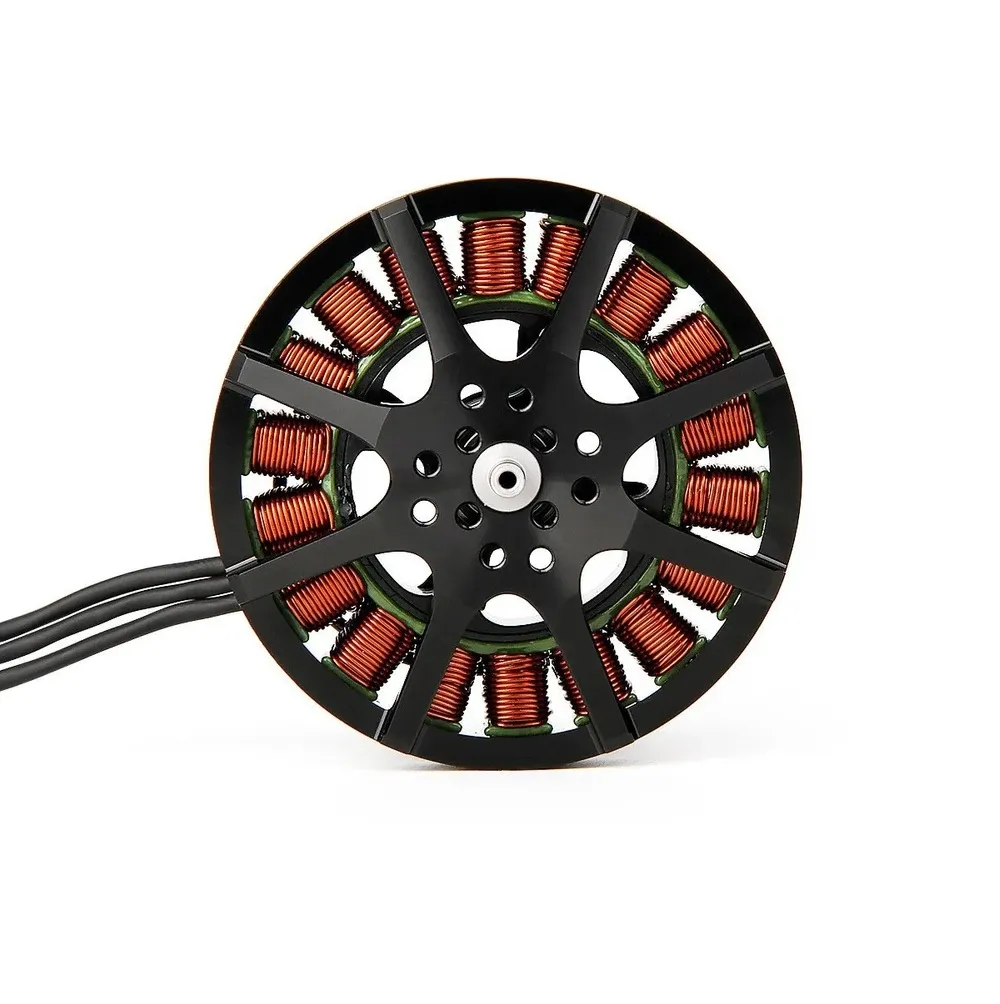

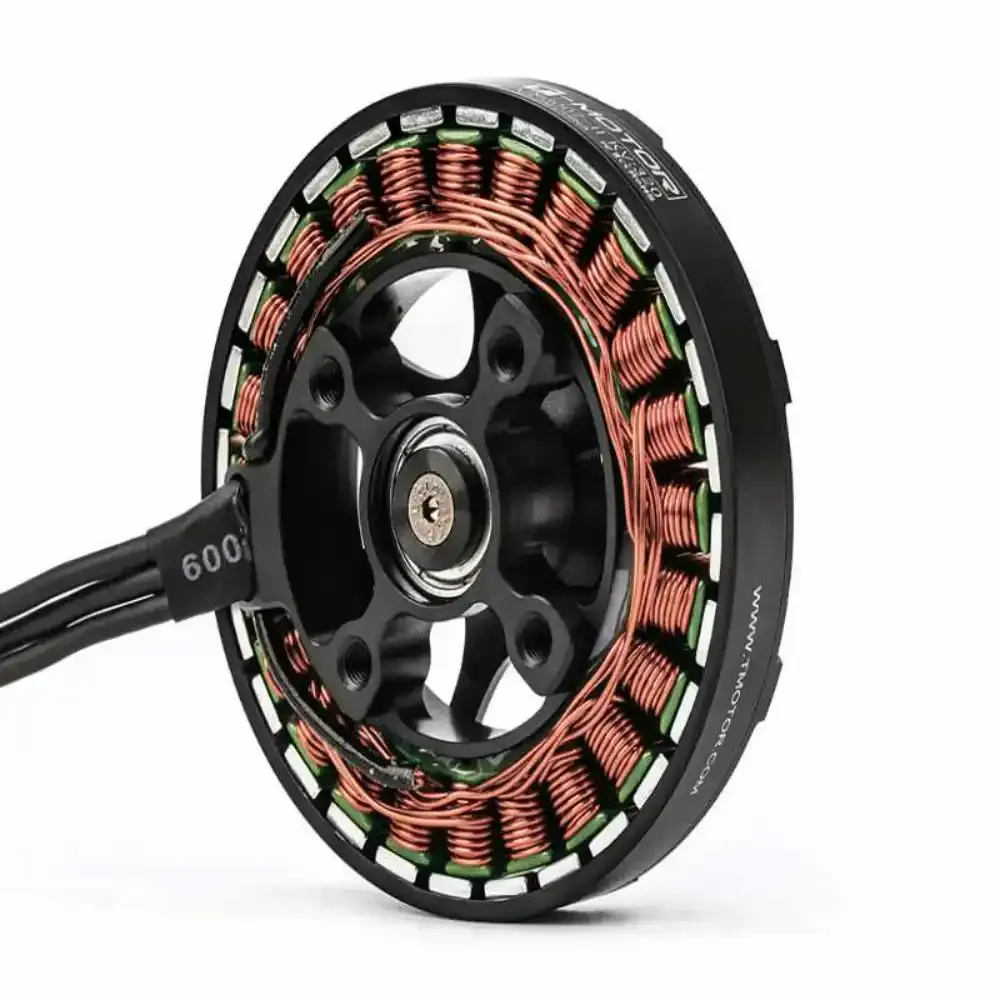

T Motor Antigravity MN6007II KV320

The T-Motor Antigravity MN6007II KV320 is an ultra-lightweight, high-efficiency brushless motor designed for professional UAV applications such as aerial photography, surveying, and rescue operations. It is the improved successor to the original MN6007 series, featuring a weight-optimised design and an advanced cooling system for extended flight times.

  • Extended Flight Time: Capable of supporting flight durations of up to 50 minutes when paired with optimized components.
  • Ultra-Lightweight Build: Weighs only 161g (including cables), achieved through a high-strength aluminum construction and thin-profile design.
  • High Efficiency & Power: Utilizes single, thick copper wire winding to minimize energy loss and maximize the power-to-weight ratio.
  • Smooth Operation: Features a multi-slot structure and precision rotor balancing (≤15mg) to ensure low cogging torque and stable flight.
  • Advanced Cooling: Incorporates a unique centrifugal cooling design that promotes optimal airflow to the windings, reducing heat buildup during heavy-duty use
Specification Details
KV (RPM/V)320
Configuration24N28P
Motor DimensionsΦ67.2 x 26.1mm
Shaft Diameter6mm (internal), 4mm (external)
Internal Resistance47.5mΩ - 50mΩ
Idle Current (18V/22V)1.0A @ 18V / 1.4A @ 22V
Peak Current (180s)44.2A
Max Power (180s)936W - 1040W
Rated Voltage6S LiPo
Max ThrustUp to 5.5kg
Lead Wire60mm - 70mm Enameled Wire
