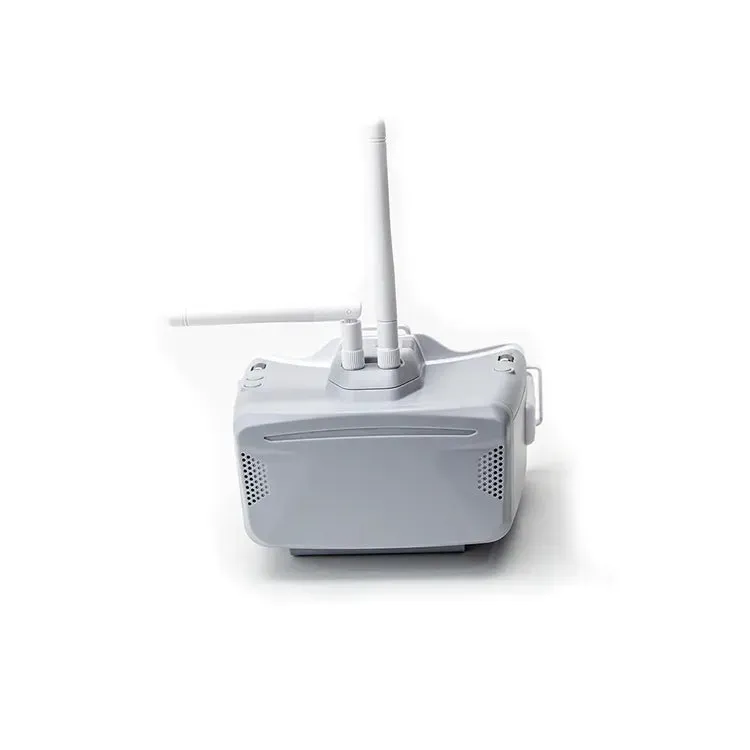

Skyzone Cobra SD FPV Goggles with DVR

The Skyzone Cobra SD FPV Goggles are advanced 5.8GHz analog box goggles featuring a diversity receiver and a high-luminance 16:9 LCD screen designed for drone racing and freestyle flight. This model is an updated, high-value version of the Cobra S, offering a compact form factor that utilizes an internal mirror system instead of a traditional Fresnel lens to reduce edge distortion.

• Diversity Receiver System: Automatically switches to the strongest signal between two antennas to provide a stable video feed and reduce image rolling during maneuvers.
• Glasses-Friendly Design: Features a spacious interior that allows pilots to wear prescription glasses comfortably without needing diopter inserts.
• Intuitive Navigation: Includes a Shuttle Wheel Control and a modernized user interface, allowing pilots to adjust settings or cycle through 48 channels without removing the goggles.
• Flexible Power Options: Supports three different power sources: a single 18650 internal battery, a 2S-6S LiPo via a DC jack, or a USB-C power bank.
• Integrated DVR: Features a built-in DVR using MJPEG compression to record flight footage at 30FPS onto a MicroSD card (up to 32GB or 128GB depending on the source).
• HDMI Input: Allows the goggles to be used for flight simulator practice by connecting directly to a PC.

•


  Specification	Detail

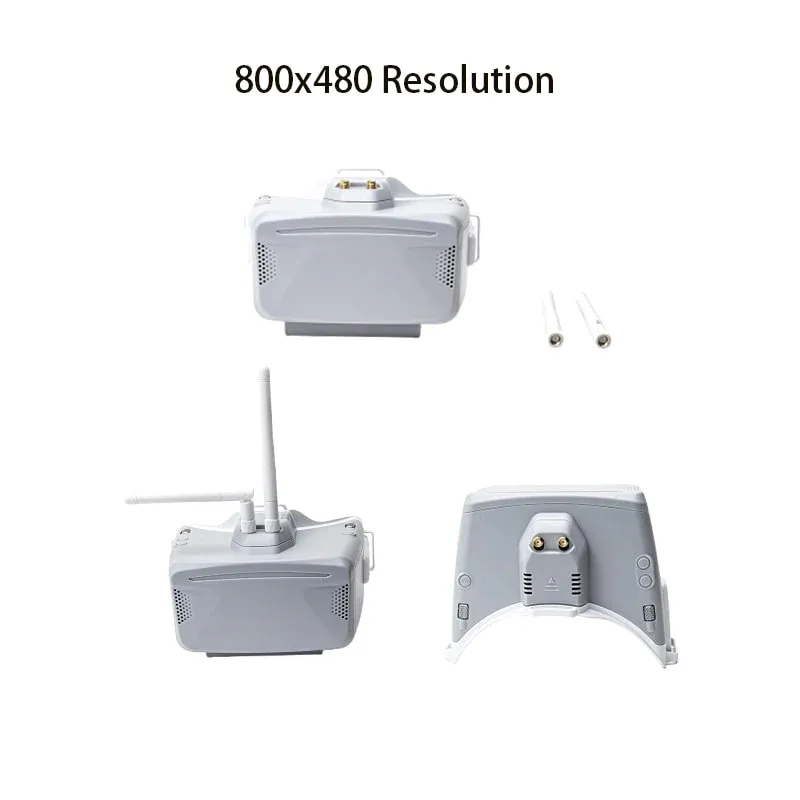

  Display Resolution	800 x 480 px (LCD)
  Aspect Ratio	16:9 (Adjustable to 4:3 in some versions)
  Field of View (FOV)	50° Diagonal
  Receiver	5.8GHz 48-Channel Diversity Receiver
  DVR Frame Rate	30FPS (MJPEG)
  Head Tracker	3-axis Accelerometer, 3-axis Gyroscope
  Power Supply	DC 6.5-25.2V / USB 5V / 1-Cell 18650
  Power Consumption	12V 0.59A / 5V 1.4A
  Dimensions	122 x 165 x 100 mm
  Weight	332g
