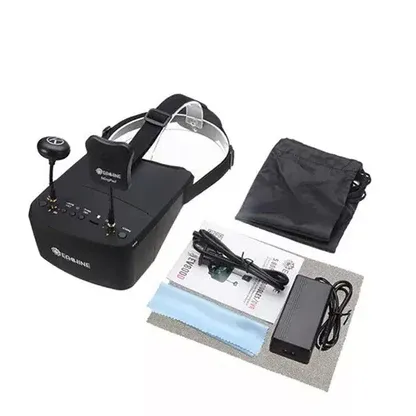

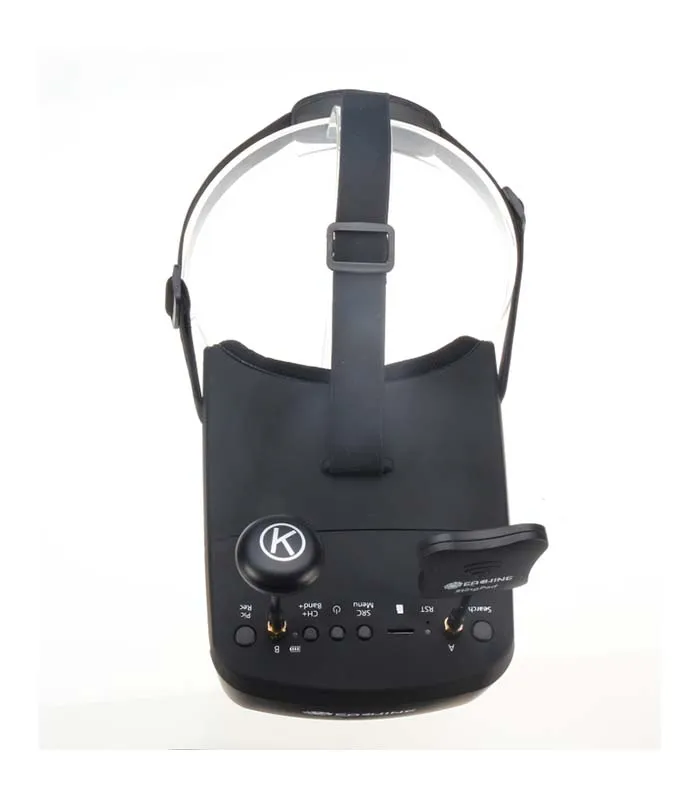

Eachine EV800D 5.8G 40CH Diversity FPV Goggles With DVR

The Eachine EV800D 5.8G 40CH Diversity FPV Goggles are a versatile FPV headset featuring a separable 2-in-1 design that allows the 5-inch screen to be used either in the goggles or as a standalone monitor. They are highly regarded for their true diversity reception and built-in DVR for flight recording.

• True Diversity System: Utilizes two super-sensitive RX5808 PRO modules (-90dB) to automatically switch to the strongest signal, ensuring a more stable video link.
• Built-in DVR: Records full-frame rate video at up to 720x576px resolution with no frame loss; requires a Class 10 (C10) micro SD card.
• Separable Design: The 5-inch screen can be removed from the headset and mounted on a tripod (using the 1/4 inch screw hole) or a radio controller to serve as a small monitor.
• Advanced Auto-Search: Includes a 40-channel receiver with RaceBand and an auto-search function that displays the active frequency on the screen.
• Dual Core Chipsets: Employs separate processors for display and recording to ensure zero delay in the live video feed during DVR operation.
• Immersive Optics: Features a 3x magnifying lens with 92% transparency and a super-wide viewing angle of up to 82 degrees for an "in-the-cockpit" feel.

• Display: 5.0-inch LCD with 800 x 480 resolution and 600cd/m² brightness.
• Aspect Ratio: Switchable between 16:9 and 4:3.
• Battery: Built-in 7.4V 1200mAh battery providing approximately 2 hours of working time.
• Power Input: Wide voltage range (10–22V); accepts 2S or 3S LiPo batteries as backup power via the DC 2.5mm port.
• Antenna Connector: RP-SMA.
• Dimensions: 180 x 145 x 82 mm.
• Weight: 362g without antennas.
